INFINITY BF27K

INFINITY BF27K

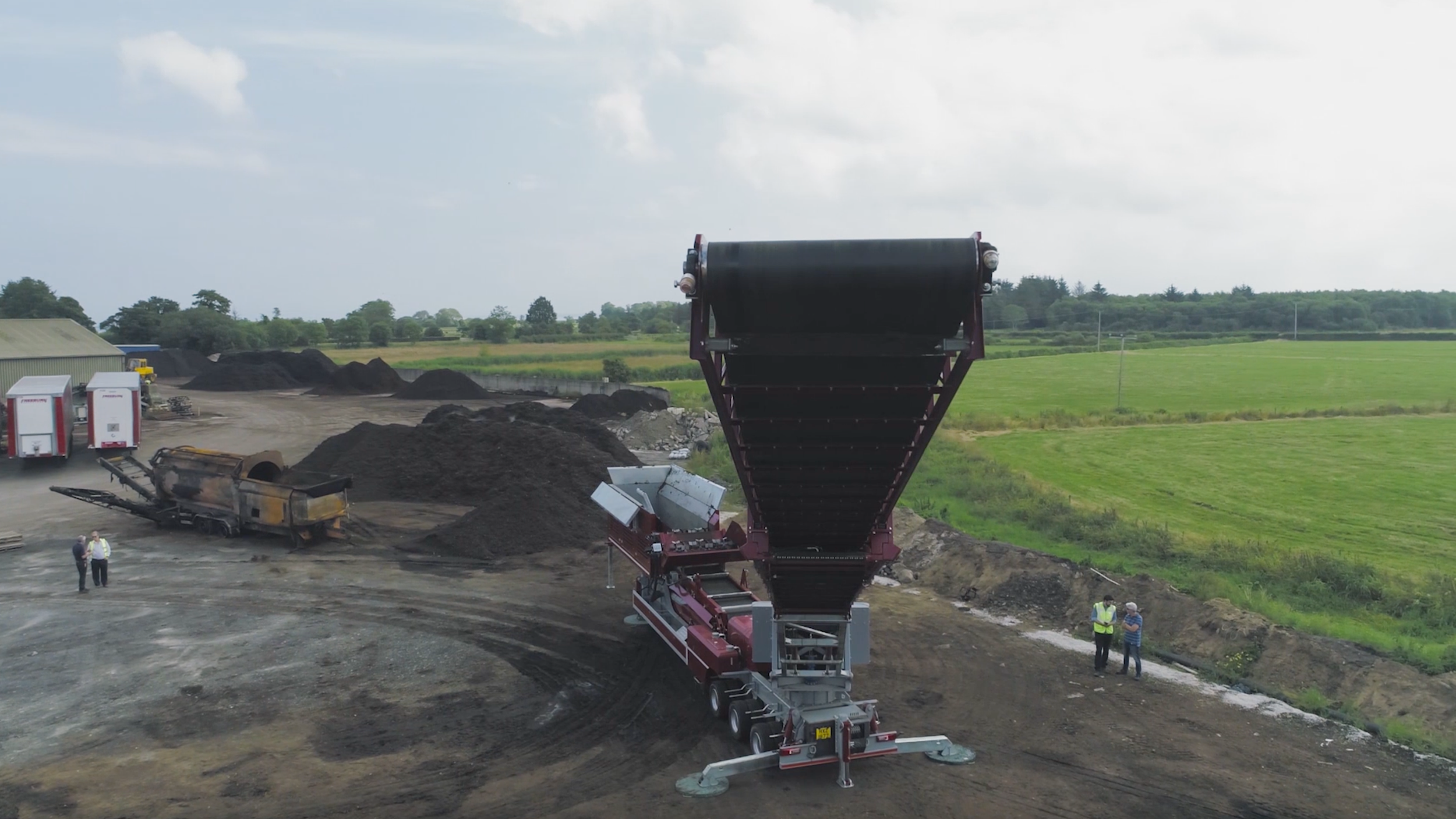

A person wearing a neon green safety vest stands on a construction site, looking at a large, grey machine with the word 'INFINITY' and an infinity symbol on it. The machine is on a dirt road with piles of earth and construction equipment in the background.
A conveyor belt loading dark soil or compost into a large pile on farmland, with a tractor and trucks in the background under a partly cloudy sky.

The Infinity BF27K is built for high-capacity performance and precision control, offering an impressive 27,000 cubic yard stockpile capacity. Its 24-yard hopper features a variable-speed twin-drive 58” belt feeder with hydraulic folding extensions, while a triple-shaft agitator ensures consistent material flow and aeration.

The 42” hydraulic transfer conveyor and 42” rotating telescopic boom provide full hydraulic control with 360° rotation, raise/lower, and telescopic reach. Powered by a 130 HP CAT Tier 4 diesel-hydraulic system, the BF27K includes programmable remote automation, a triple air-axle trailer, and a built-in air compressor for easy transport and operation.

Patent Protected: US 11,319,170 • US 11,795,015 • UK 2584571 • AU 2019222617 • CAN # 3,090,895

TECH SPECS

  • 24 cubic yard hopper with variable speed twin drive 58" belt feeder. Hydraulic folding hopper extensions.

  • Tripple shaft agitator unit to mix and aerate material..

  • Hydraulic drive 42" transfer conveyor with hydraulic folding side skirting and hydraulic folding frame.

  • Hydraulic twin drive 42” rotating telescopic boom conveyor, mounted on rotating swing assembly, full hydraulic raise/lower, telescopic in/out, full 360-degree rotation.

  • Triple air axle trailer, brakes, lights and fifth wheel.

  • 130 HP Cat Tier 4 diesel over hydraulic power plant to power complete unit.

  • Full remote control on telescopic functions with programmable automation for radial telescopic conveyor functions.

  • Transfer conveyor belt covers.

  • Telescopic conveyor inner and outer belt conveyor covers.

  • Four hopper hydraulic legs and three rear hydraulic outriggers complete with six crane pads.

  • Centralized grease points, refillable individual cartridges on telescopic conveyor.

  • All conveyor belts are complete with vulcanized joints.

  • On board electric air compressor to provide axle and brake functions when moving without a semi-tractor. Air hose for cleaning.

  • Front slide out tow hitch for onsite movement.

  • LED work lights.

Learn more
Video

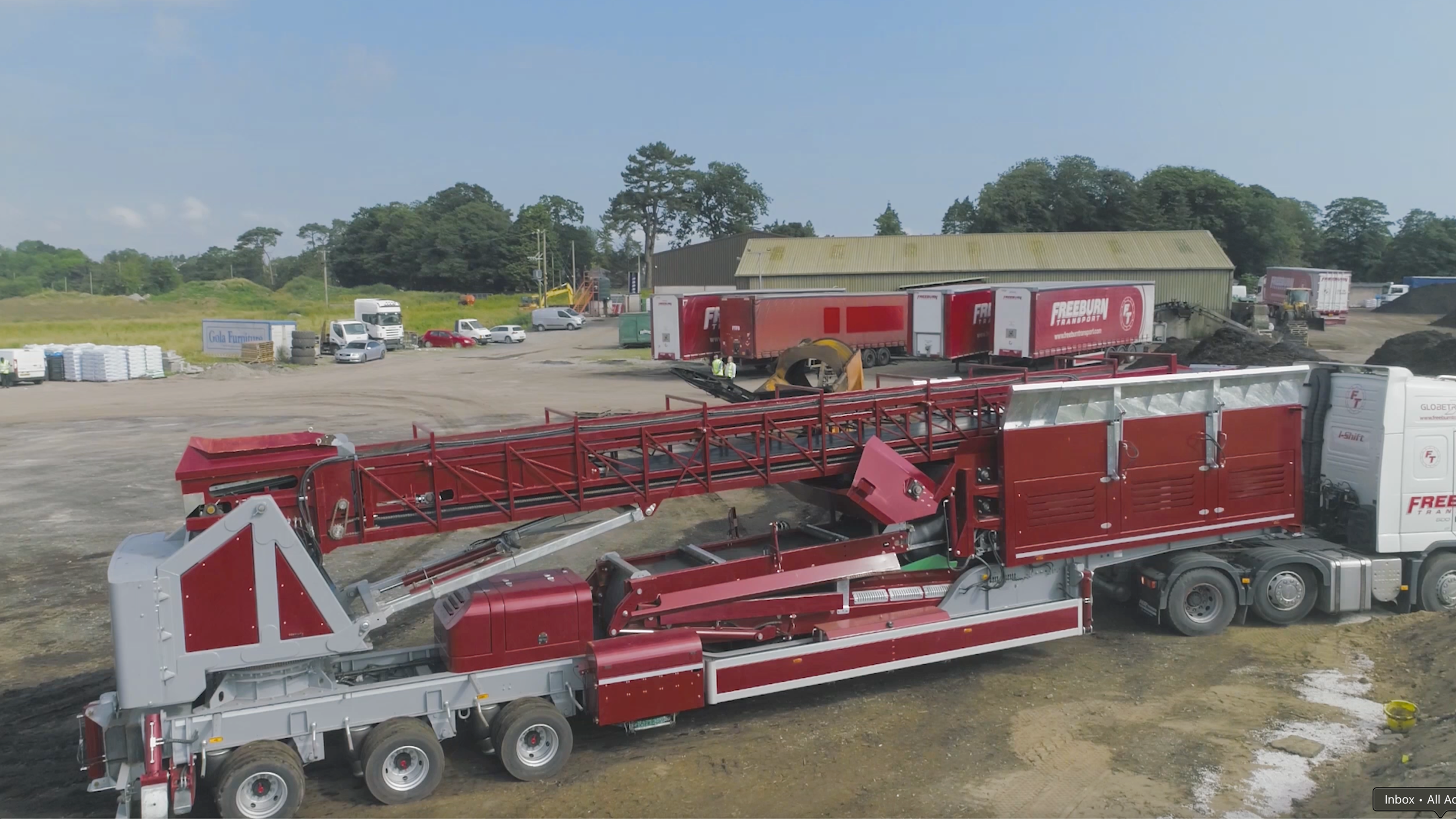

  • A large red and white heavy-duty industrial machine, called the Infinity BF27K on a construction site with trucks, construction materials, and a warehouse in the background.

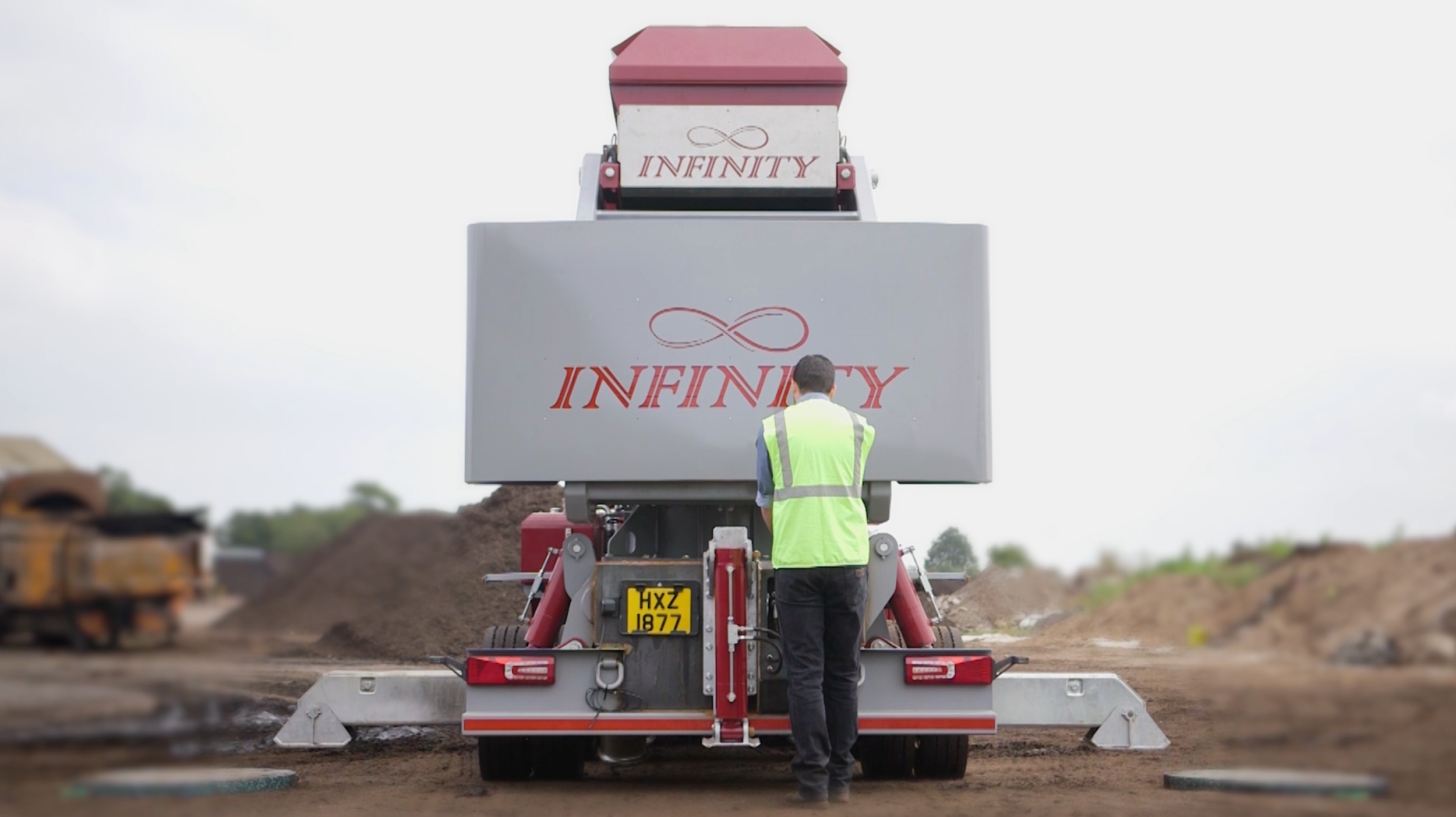

  • A man in a safety vest stands in front of a large machine with the word 'INFINITY' and an infinity symbol on it, at a construction site.

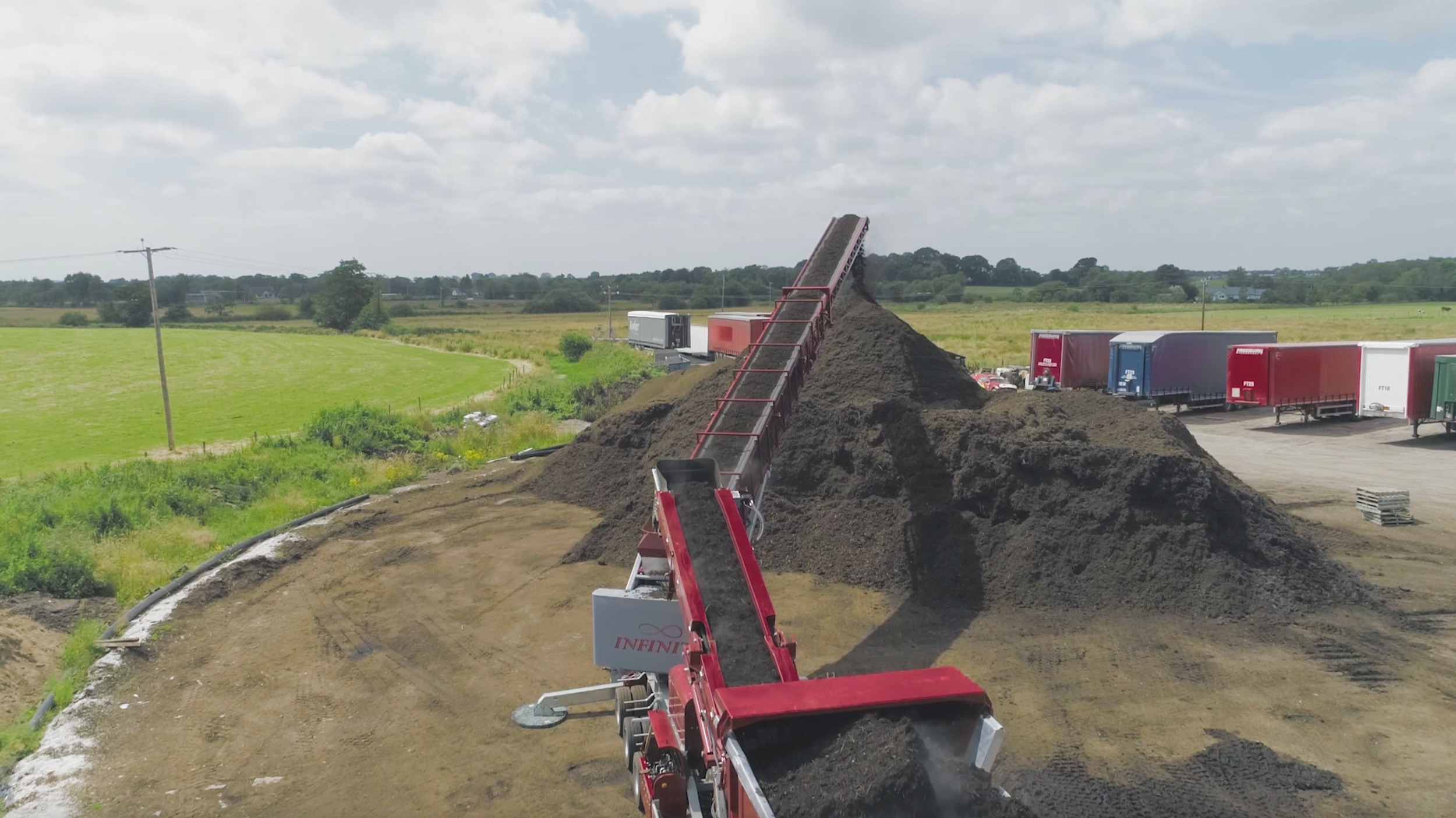

  • A large industrial machinery with a conveyor belt in a rural outdoor setting, with piles of dark material and a few workers nearby, green fields and cloudy sky in the background.

  • A red conveyor belt unloading dark soil or compost into a large pile outdoors, with trucks and a grassy field in the background.

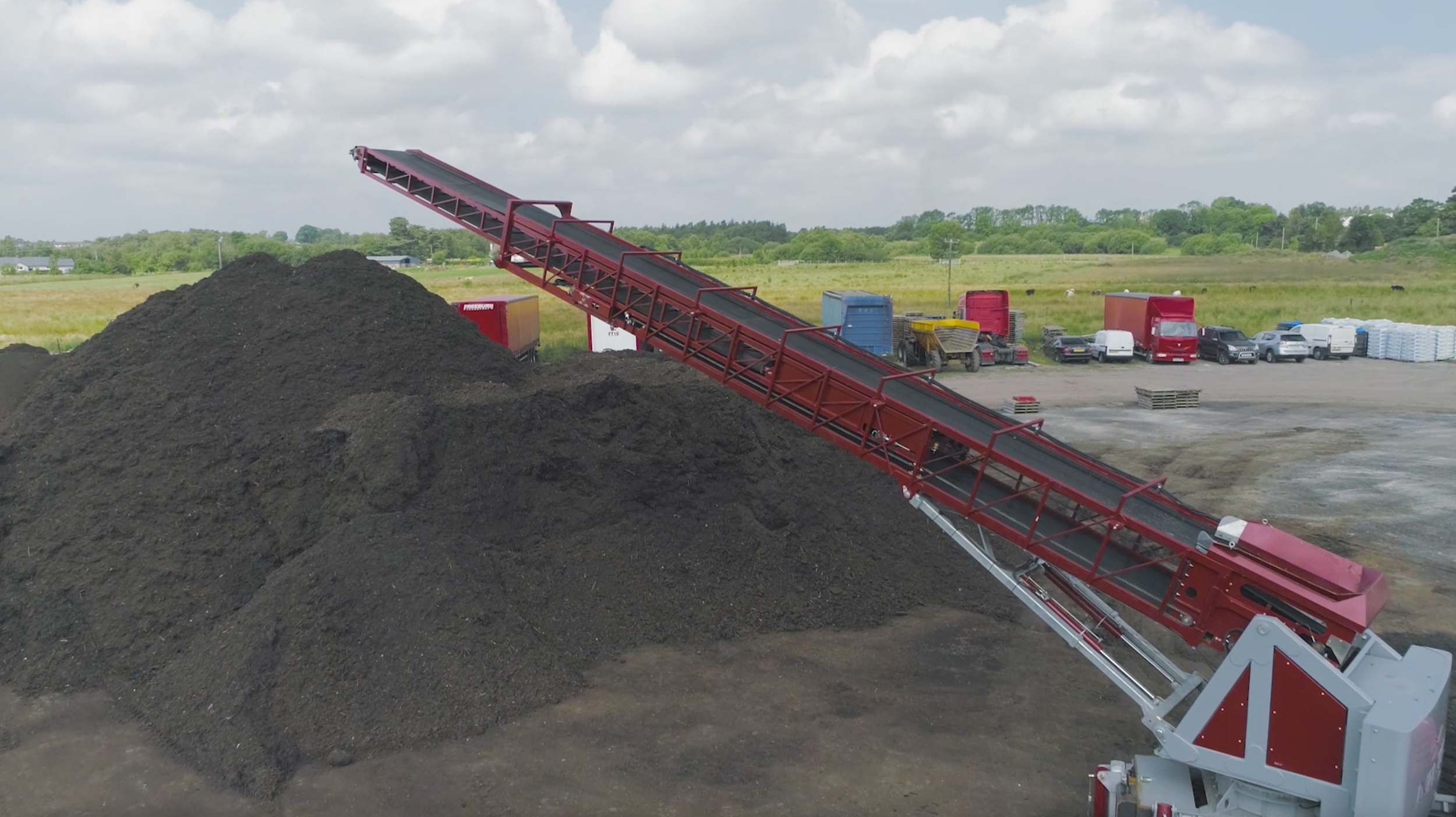

  • A large red conveyor belt moving dark soil onto a pile in an open field with green grass, trees, and cloudy sky in the background. There are multiple trailers and trucks nearby.

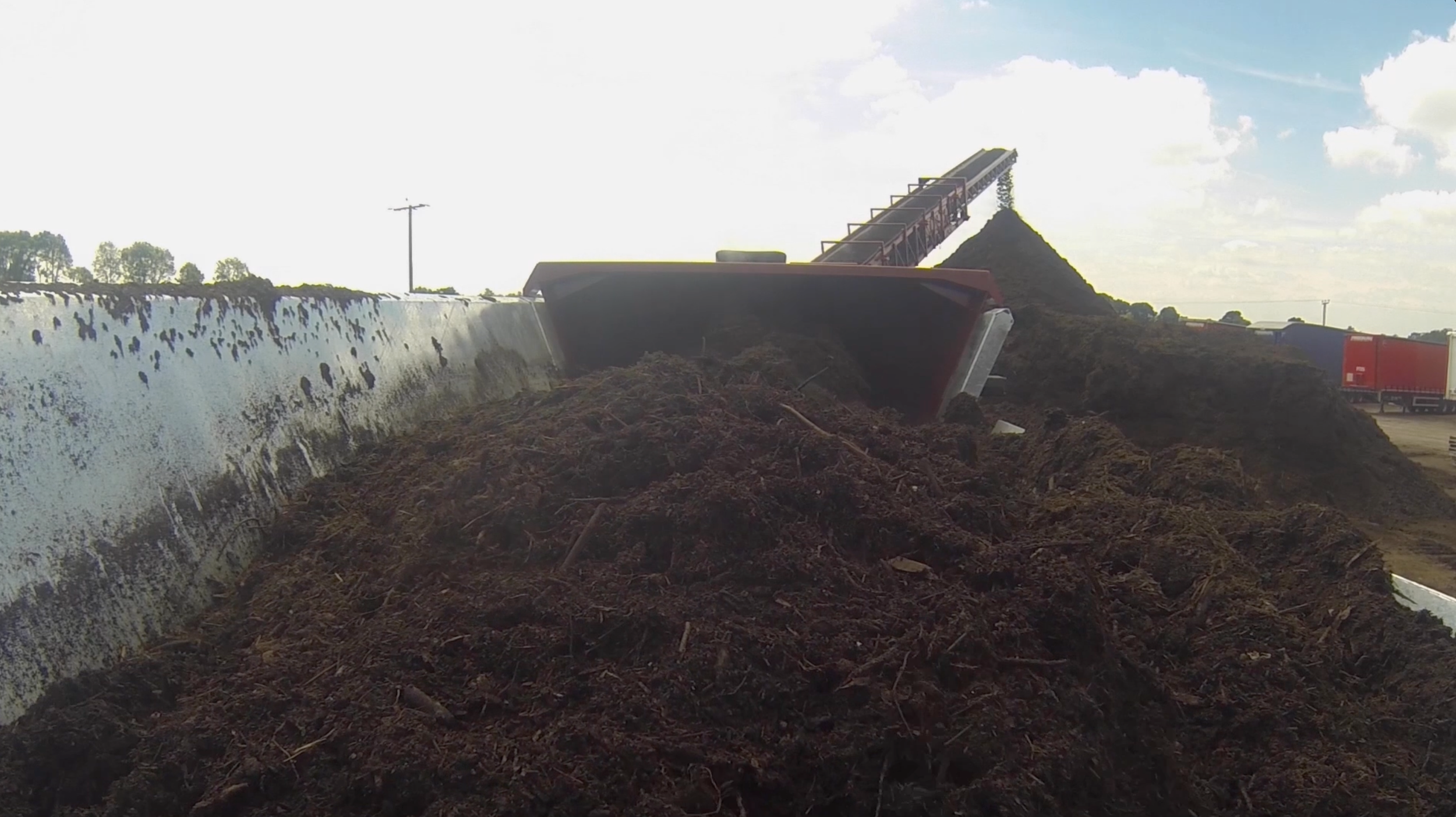

A construction site with a conveyor belt transferring dark soil or dirt into pile, surrounded by a rural landscape with green fields and scattered trees under a cloudy sky.

INFINITY BF27K

Learn more about how this powerful conveyor can streamline your operation!
